Introduced in August 1917, the Type 57 Cadillacs were similar in general appearance to the Type 55 models that had preceded them. The doors on some models were more square-cornered instead of rounded.  Radiators were taller, as were the motor hoods which were also longer and sloped up into a modified cowl. The former raised beading on the hood gave way to a new, smooth finish. Late in the year 1919, Cadillac adopted a new hood design with 25 more closely spaced louvers compared to only 9 on the earlier cars.

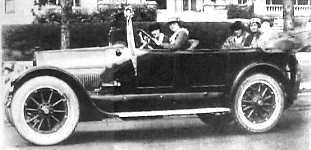

Late-model Type 57 Cadillac (1919)
with new hood louvers



The Cadillacs of the late teens and early twenties are among the most difficult to date accurately at a simple glance.   As regards the Type 57 cars, look for the black-enameled headlights with the distinctive nickel trim, as well as the absence of the earlier hood beading.


Black-enameled headlights
with bright nickel trim



Look at this list of standard features and equipment for the Type 57 Cadillac (1918-19): "Gypsy"-type, one man top on open cars with  bevel glass window in rear; fully lined top; side curtains 75%   transparent, mounted on brackets to swing with doors; dust envelope for top; windshield with lower ventilation, outward swinging top portion on some models; full lamp equipment with tilt-beam headlights controlled by a lever on the steering column; headlights and side lights black enameled with nickel trim; tonneau lamp on open cars; dome and quarter lamps on enclosed cars; lighted eight-day clock; speedometer with large enough figures to be read by back-seat-drivers; trip reset odometer; gas gauge; electric horn; Kellogg electric tire pump (compressor); foot rest; robe hanger; license plate holders; tool kit, including pocket kit carried in driver's door of open cars; spare tire bracket in rear for two tires; universal key. English long-grain, hand-buffed black leather was used to upholster the open cars; it was laid in plaits. Enclosed cars used a variety of high quality, selected cloths.

Glasgow-born [like me] Cadillac engineer D. McCall-White, the who had been instrumental in designing the first ever mass-produced V8 motor, left Cadillac to form the Lafayette Automobile Co. Regrettably that new venture was to last only seven years.

Cars are listed below in two series and in ascending order of their 1918 list price.  First are those built on the 125" wheel base chassis, then come the top-of-the-line cars, built on the 132" wheel-base chassis. The prices shown below are indicative only; there were a number of price increases during the period 1918-19; these were due in part to Government imposed war taxes.

Additional information on the 1918-19 Cadillac Type 57, and the related sales literature, may be found  in The (New) Cadillac Database© sections entitled "Descriptions and Specifications of Cadillac Cars 1913-21", "Cadillac and La Salle Sales Literature 1915 - 1919" and "Dream Cars from 1903 to 1919".  Further recommended reading includes:

The "Standard Catalog of Cadillac, 1903-2000" edited by James T. Lenzke, © 2000, published by Krause Publications, Inc., 700 E. State Street, Iola, WI 54990 [ISBN #0-87341-925-1, Library of Congress #91-61301].

The Cadillac advertsing copy-writers had this to say about the new models for 1919: New light is being thrown on the economy of the Cadillac.  War tests have emphasized owners' experiences. Its ability to negotiate great distances, or heavy milaege, day after day, without overhauling or adjustment, stands out in bold reflief.  Given ordinary care, its beautiful driving and riding service  is delivered at an absolute minimum of maintenance cost.  A new spirit of discrimination animates America in motor car buying.  It is focusing on the Cadillac as the foremost exponent of known and permanent value in the world today.


Body styles on 125" wheel base chassis

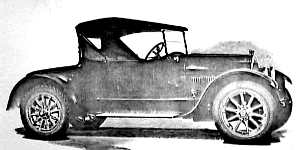

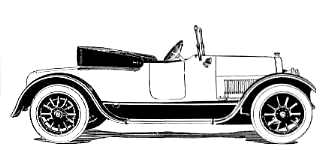

The roadster



The roadster for 2 passengers ($2,590 in 1918, $3,220 in 1919)
The survivor, above, was (is?) located in the Volo Museum, IL

This other roadster is under restoration


Seen on the Internet, in 2000, the above two rows feature a custom 1918 roadster with a boat-tail rear body

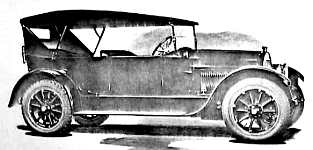

The phaeton



The phaeton for 4 passengers ($2,590 in 1918, $3,220 in 1919)

A survivor in the fifties or sixties
[ Photo:  Internet, 3/2003 ]

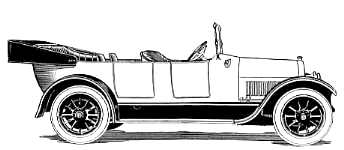

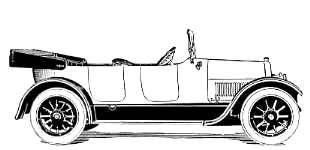

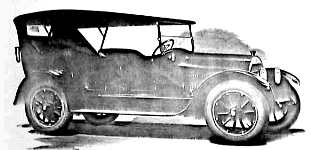

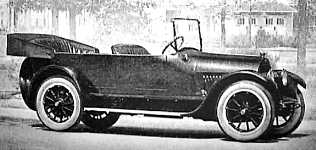

The touring car



The touring car for 7 passengers ($2,590 in 1918, $3,220 in 1919)

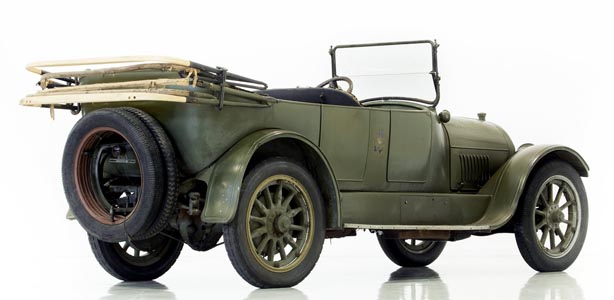

After grueling tests in Marfa, Texas, the 1918 Cadillac touring car
was picked by the U.S. army for use of its military personnel

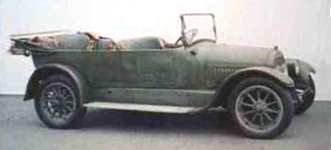

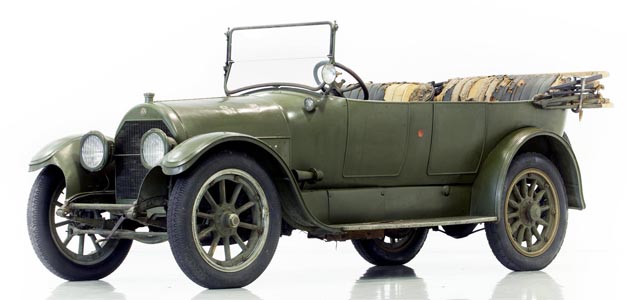

[ this survivor was for sale on Internet in September, 2003 ]

See "Survivors", below, for further information about this car

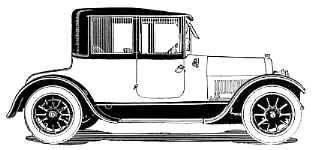

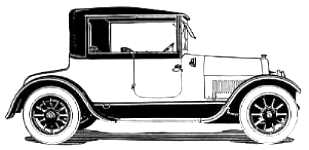

The Victoria


At far right, the fourth seat collapses and folds under the instrument panel

The convertible Victoria,   style #2750, closed and open  ($3,075 in 1918, $$3,990 in 1919)
in 1919 the Victoria was no longer "convertible"; it got an aluminum roof in lieu of  the leather-covered steel top

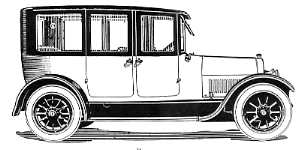

The Brougham


The brougham, style #2730  ($3,535 in 1918)
Replaced by the new sedan model, style #3050, in 1919;
the latter car had a full-width front seat and no auxiliary seating in the rear

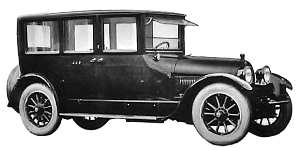

On of these (photo, left) was presented by the Cadillac company to Gen. John J. Pershing for his distinguished
service to the country in WW1; the General is seen (right) alighting from another 1919 Cadillac, a limousine

A 7-passenger version may have been built ($4,145)




The sedan
[new for 1919 - replacing the brougham]

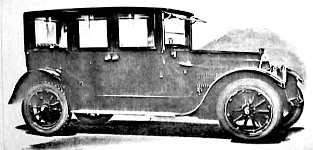

The sedan for 5 passengers, style #3050 ($4,215)



Body styles on 132" wheel base chassis

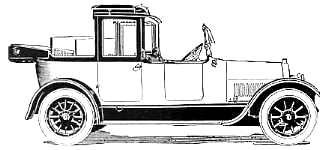

The town landaulet

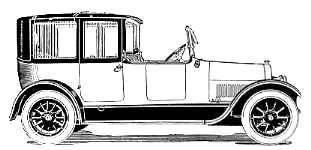

The town landaulet for 6 passengers, style #2840  ($4,295)

this model too was dropped during 1919

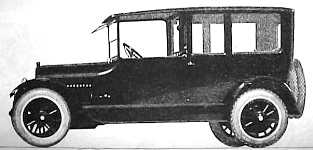

The standard limousine



Left: driver's compartment could be closed with storm curtains; a vertical opening allowed for hand signals
Right: privacy curtains and robe cord in luxurious, rear passenger compartment (center)

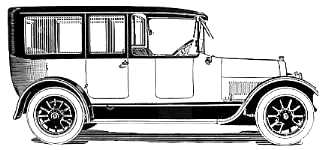

The limousine for 7 passengers, style #2740   ($4,085 in 1918),
in 1919, style #3210 ($4,520)

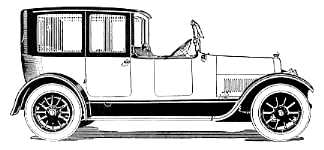

The town limousine
[re-named the town brougham for 1919]



The town limousine for 6 passengers, style #2680 ($4,160 in 1918)
in 1919 this was re-named the town brougham for 6 passengers ($4,520)

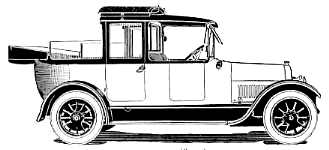

The landaulet
[this model was dropped during 1919]



The landaulet for 7 passengers, style #2770 in 1918 (circa $4,235 in 1918)

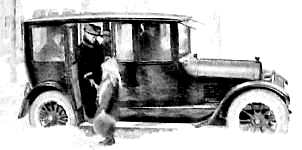

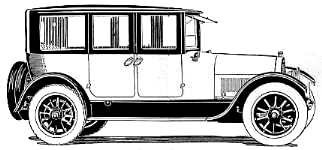

The suburban
[new, added mid-year 1918]

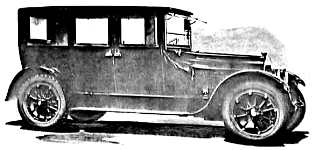

The suburban for 7 passengers, style #2910 ($4,090 in 1918)
in 1919, style #3140 ($4,465)

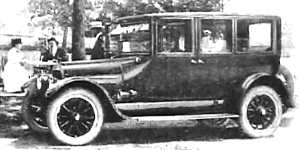

A rare survivor

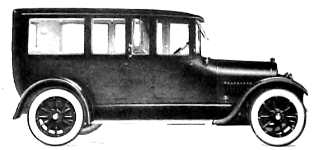

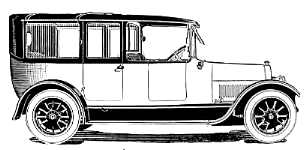

The imperial limousine

The imperial limousine for 7 passengers, style #2760 in 1918  ($4,285 in 1918, $4,620 in 1919)



Other styles built in 1918 include a police patrol vehicle, listing for $3,850, an ambulance for $4,350 and a hearse for $$4,685.  A police patrol vehicle was offered again in 1919, for $$4,050; there was also a new ambulance for $4,550. No hearse was offered in 1919.




Left:  the engine, seen from the front, with cover removed

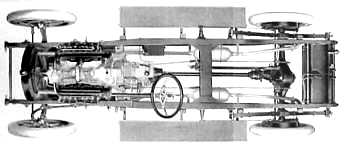

Right:  the chassis of the 1918-19 Cadillac Type 57

Left:  typical 1918-19 tool compartment and tools
Right: open cars had hand tools in convenient fold-out panel on driver's door

Mechanical tilt-beam headlights operated by lever on steering column

Left:  swing-out upper windshield afforded plentiful ventilation
Right: two spare tires were carried on special rear-mounted holder

Flat tire was not a problem with this electric inflator

Left: instrument panel;  center: folding steering wheel; right: other misc. body details (inside and out)





Last month my husband bought me a 1918 Cadillac for my 55th Birthday.  We purchased the car while competing in the Great American Race (www.greatrace.com) with no knowledge of old V-8 Cadillacs - only a knowledge that my mother who had recently died learned to drive on an early Cad touring and it would be a suitable use of my inheritance.  Now we have the car and are having a trouble identifying it and my husband Pat suggested I write to you.  (He is the lucky "custodian" of Jack Frank's 1935 V12 Town Cabriolet.) Here's the story:  We bought the Cad thinking it was a 1917 Phaeton.  When we picked it up we discovered it is actually a very early 1918 Model 57 originally titled in 1917.  The data plate reads "A-57-675" which is of interest as we thought it should read "57 - A - 675".  The car is very authentic and in many cases original so we feel fairly confident it is genuine.  After we picked up the car in Flagstaff (the previous owner had it for 38 years and never belonged to a club) we stopped by a friend of my brother's who owns a 1917 Phaeton.  When we put the two cars side-by-side our '18 was quite a bit larger than the Phaeton and has more elaborate coachwork.  The gentleman with the '17 and the Title for the car call our '18 a "Touring Sedan" - however I do not see a Touring Sedan listed in any of the Cadillac literature.   The car is missing some "jewelry" details, the fender-mounted horn, the clock, the face & bezel for the speedometer, tail light, side curtains, etc. for which we are starting our search to find. I can hardly wait to receive the new tires for the car so I can take her out for a spin (It has old Western Auto tires that are very checked).  She runs like a top!  Any information or direction to information you can give us will be greatly appreciated.  Thanks! Pat Pat Brothers. 503-313-1956 (cell); PS:  My father was a collector and during his last 35 years must have owned 10-12 Cadillacs from 1926-1962 - Both Pat and I have "the bug".


The car below is NOT the one described above /and for which I have no photo)
but ANOTHER erqually rare survivor I discovered on the Internet in 2014

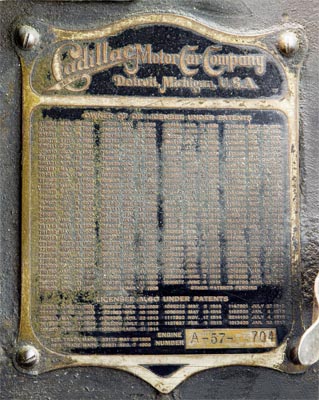

The VIN is 57 - A - 704, just 29 units after the car owned by the Pat brothers, above

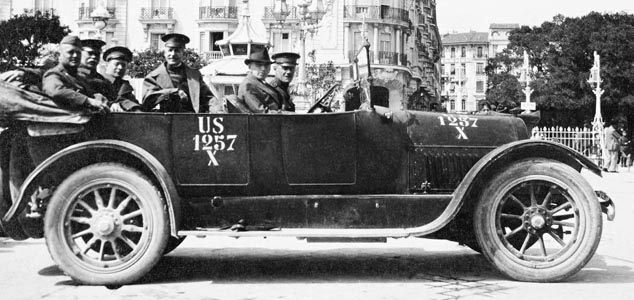

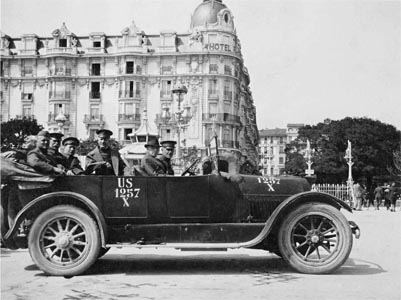

This period photo is undated but I was able to identify the location as being the Hotel Ruhl and des Anglais, in Nice, France

From the style of cars visible in the street, I'm guessing this PC is from the mid- to late 20s
